ASTM E648 Flooring Radiant Heat Flux Test Apparatus

This test method measures the critical radiant flux of horizontally-mounted floor covering systems exposed to a flaming ignition source in a graded radiant heat environment within a test chamber. It can also measure the critical radiant flux for exposed attic floor cellulose insulation.

Suitable for all types of flooring materials including textile carpets, soft wood, wood, rubber and plastic flooring, and floor board spray materials. The apparatus evaluates combustion performance of flooring systems including substrates, backing materials, or any modifications that may affect test results.

• GB/T 11785: Flooring combustion performance measurement - radiant heat source
• ISO 9239-1:2002: Flooring combustion performance Part 1 - combustion performance determined with radiant heat resource
• ASTM E648: Standard Test Method for Critical Radiant Flux of Floor-covering Systems Using a Radiant Heat

• Power supply: AC 220V, 50HZ
• Total power: 2KW
• Timer accuracy: < 1s/h
• Heat flux measurement range: (0-15) Kw/m²
• Heat flux meter accuracy: ± 0.2Kw/m² (<± 3%)
• Thermal radiation temperature range: 400-600℃, accuracy ±0.5℃
• Blackbody temperature error: ±5℃
• Exhaust speed: (2.5 ± 0.2) m/s
• Exhaust capacity: (39-85) m³/min

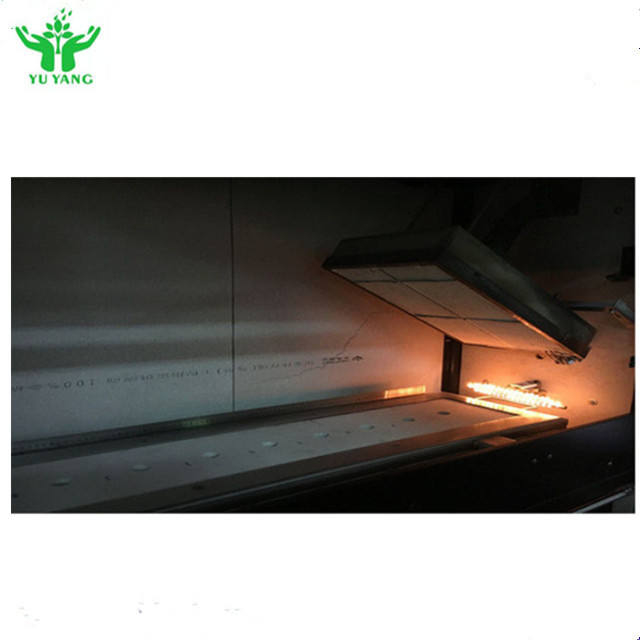

• Porous refractory radiant panel: 300mm × 450mm, capable of ~900℃
• Thermocouple: K diameter stainless steel sheathed thermocouple of 3.2mm
• Heat flux distribution requirements:
  • 200mm: (9.1 ± 0.4) KW/m²
  • 400mm: (5.0 ± 0.4) KW/m²
  • 600mm: (2.4 ± 0.2) KW/m²
• Combustion gases: Propane (supplied by customer)
• Combustion gas flow rate: (0.026 ± 0.002) L/S
• Combustion burner: Outer diameter 10mm, inner diameter 6mm, with 35 holes of 0.7mm
• Flame height: 60-120mm adjustable
• Ignition system: High-voltage electronic ignition
• Exhaust system: Powerful exhaust fan automatically activates post-test

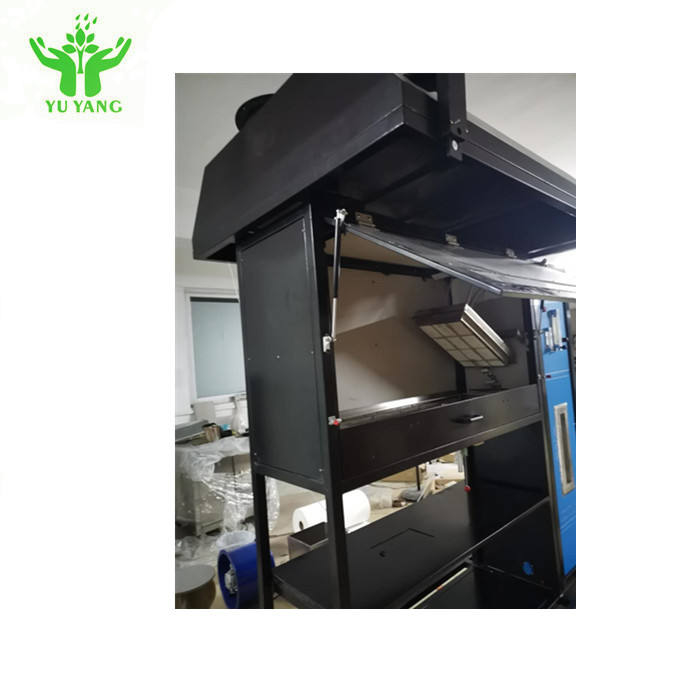

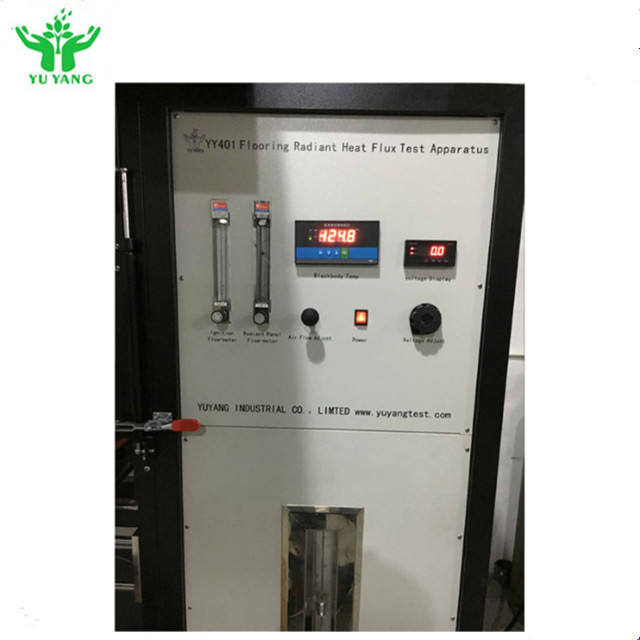

• Comprises combustion chamber and control box
• Combustion chamber dimensions: 1420 × 1200 × 2300mm
• Overall dimensions: 2530 × 1270 × 2700mm (including electrical cabinet)
• Materials: High-quality 304 stainless steel (1.2mm thickness), CNC machined
• Blowtorch: 304 stainless steel, fully compliant with GB/T11785 standards
• Other components: 304 stainless steel or A3 material with thick plating for corrosion resistance

• Computer-controlled system with Windows XP operating system
• Includes computer and printer
• Light transmittance measurement software with curve output capability
• Safety features: Power overload protection, short circuit protection, control loop overload protection
