Name: Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: Yy410
Price: 25,000.00 USD
Availability: InStock

Zu Hause > produits > Entflammbarkeits-Testgerät >

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

fire testing machine for building materials

surface burning characteristics testing equipment

flammability testing equipment with warranty

Herkunftsort:

China

Markenname:

YUYANG

Zertifizierung:

Modellnummer:

Yy410

Kontakt mit uns

Fordern Sie ein Zitat

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Einzelheiten zum Produkt

Sperrholzdachbedeckungsmaterial, Größe:

1.300 (W) × 1.000 (d) × 120 (H)

Stromversorgung:

380 V 50 Hz dreiphasige Fünf-Draht-System

Testtunnelofen:

3. Länge 7,62 m, offener Endquerschnitt 0,45 m * 0,3 m, Firebrick Max Temperatur 2500 ℃

Brennerwinkel:

45 °

Gasquelle:

> 95% Propangas; （Benutzer sollte sich selbst bereitstellen）

Gasdruck:

10kpa~50kpa

Hervorheben:

fire testing machine for building materials

surface burning characteristics testing equipment

flammability testing equipment with warranty

Zahlungs- und Versandbedingungen

Min Bestellmenge

Set/Sets

Preis

pending

Lieferzeit

Zahlungsbedingungen

L/c, t/t

Versorgungsmaterial-Fähigkeit

Verwandte Produkte

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Beste Preis

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Beste Preis

YY-121 Building Materials Difficult Flammability Test Equipment

Beste Preis

Video

Biologische Sicherheitswerkbank der Klasse II A2 mit 780 mm Tiefe

Beste Preis

Kontakt mit uns

86-769-26622869

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Fire Testing Machine for Building Materials

YY410 UL790 Fire Performance Tester for evaluating surface burning characteristics of building materials and photovoltaic cell modules.

Scope of Application

This equipment evaluates roofing materials exposed to simulated exterior building fires, assessing fire resistance at distances of 1.82m, 2.4m and 3.9m to Class AC. Also suitable for testing photovoltaic cell module fire resistance.

Compliance Standards

UL 1730 Smoke Detector Monitors
UL 790 Standard Test Method for Fire Testing of Roof Coverings
IEC 61730-2 Photovoltaic Modules Appendix A Fire Tests
ASTM F 108-04 Standard Test Method for Fire Tests of Roof Coverings
NFPA 256 Fire Tests for Roof Coverings

Performance Parameters

Plywood roof covering material: 1,300(W) × 1,000(D) × 120(H) mm
Non-combustible test plate to block tempering
Adjustable fan plate: 1,440(L) x 940(H) mm
Corrosion-resistant steel main frame: 1,020(L) x 1,000(D) x 1,473(H) mm
Non-combustible panel assembly: 330(W) x 2,130(D) x 584(H) mm
Test panel air flow rate: 19±8 km/h (5.5m/sec) with anemometer
Independent air duct with honeycomb filter screen

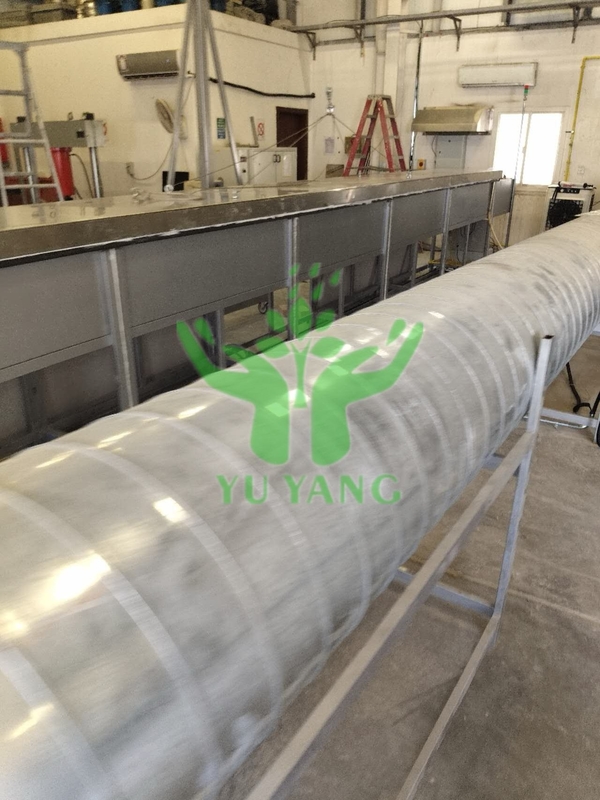

Stainless steel air duct: 2,130(W) x 762(H) x 5,200(L) mm
380V, 50HZ three-phase power fan with reverse system (min flow 300m³/min)
Gas burner: 1.12m long, diameter 60.3mm with 12.7mm wide slit
Gas burner capacity: 22,000Btu/min (387kWh) with automatic flow adjustment
Automatic ignition system (minimum 1.8kVp)
Data acquisition system with LabView programming and NI modules
Industrial control computer with 21-inch monitor and test software
Sample ignition device adjustable to 880±10℃
Rotatable metal grid for material support
Advanced temperature and fan wind speed control systems
Comprehensive gas leakage and carbon monoxide safety alarms
Power requirements: 380V 50HZ three-phase, ≥30KW

Equipment Description

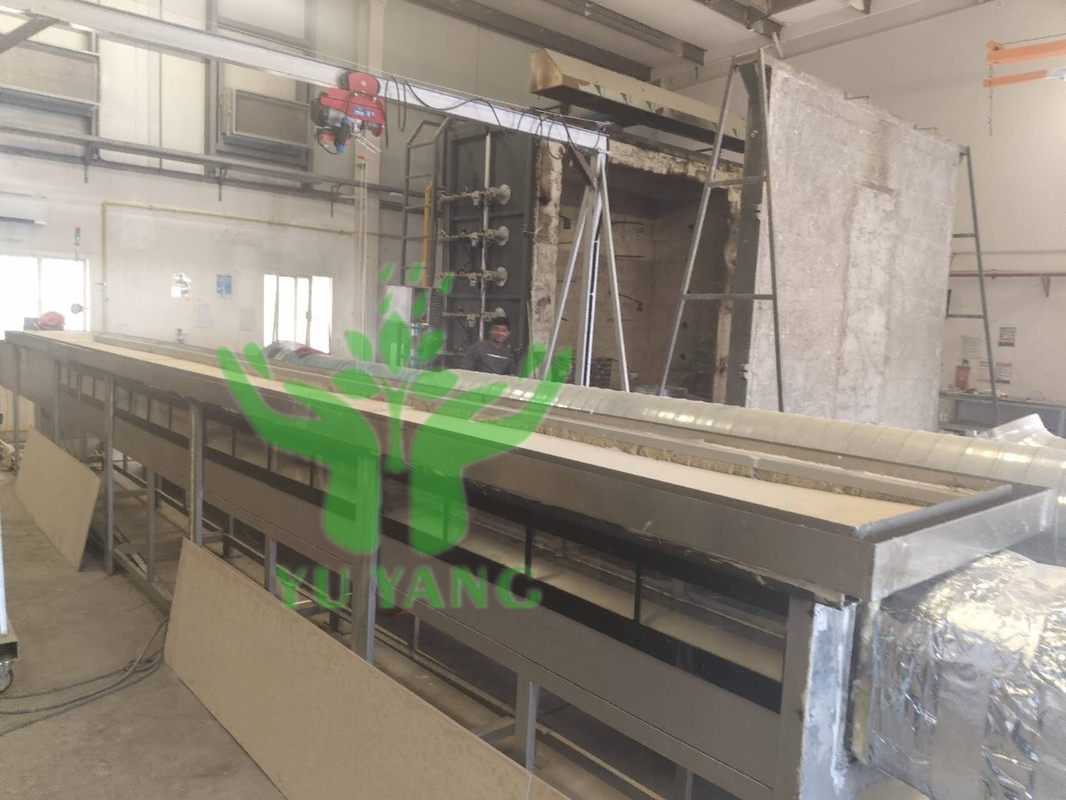

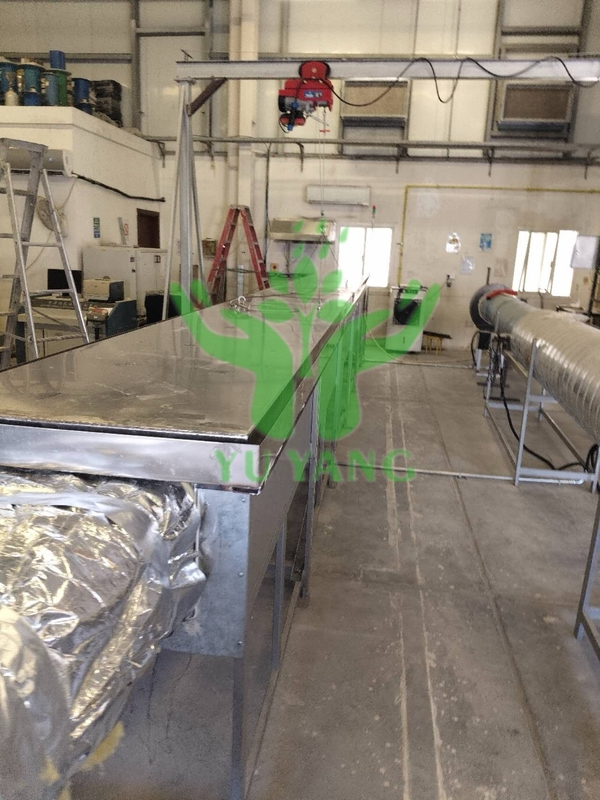

The system consists of an adjustable test platform, non-combustible panel assembly, gas burner, supply fan with air channel, isolation plate, and fire panels. Tests must be conducted in a controlled environment (10-32°C) with all openings closed to prevent external interference.

Before testing, mortar should fill gaps between roof covering material and frame to prevent air/flame passage. Airflow must be calibrated using 1m×1.3m plywood at specified inclination (127mm/300mm).
