Name: ISO-Certified Ignitability Test Apparatus for Building Materials
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: Yy510
Price: 2250 USD
Availability: InStock

Zu Hause > produits > Baumaterial-Feuerprüfvorrichtung >

ISO-Certified Ignitability Test Apparatus for Building Materials

ISO-certified ignitability test apparatus

building material fire tester

fire test apparatus for construction

Herkunftsort:

China

Markenname:

YUYANG

Zertifizierung:

ISO 11925-2

Modellnummer:

Yy510

Kontakt mit uns

Fordern Sie ein Zitat

ISO-Certified Ignitability Test Apparatus for Building Materials

Einzelheiten zum Produkt

Produktname:

Prüfgerät zur Prüfung der Entzündbarkeit von Baustoffen

Anwendung:

Baustoffe

Leistung:

Elektronisch

Stromspannung:

220 V

Versorgungsspannung:

AC220V±10%, 50Hz

Gasquelle:

>95% Propangas

Gasdruck:

10kpa~50kpa

Rauchluftgeschwindigkeit:

0,7 m/s

Hervorheben:

ISO-certified ignitability test apparatus

building material fire tester

fire test apparatus for construction

Zahlungs- und Versandbedingungen

Min Bestellmenge

1pc

Preis

$2250

Verpackung Informationen

Holzkiste

Lieferzeit

15-20 Tage

Zahlungsbedingungen

T/t

Versorgungsmaterial-Fähigkeit

10 Sätze/Monat

Verwandte Produkte

ISO-Certified Ignitability Test Apparatus for Building Materials

Beste Preis

Video

Baustoff-Verbrennungsanalysator Iso 1182 Nichtbrennbarkeitsprüfgerät

Beste Preis

Video

EN ISO 1182 Baumaterialien Nichtbrennbarkeitsprüfgerät

Beste Preis

Große Doppelschicht-hitzebeständige Glasrauch-Dichte-Test-Kammer BSS 7239

Beste Preis

Kontakt mit uns

86-769-26622869

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

ISO-Certified Ignitability Test Apparatus for Building Materials

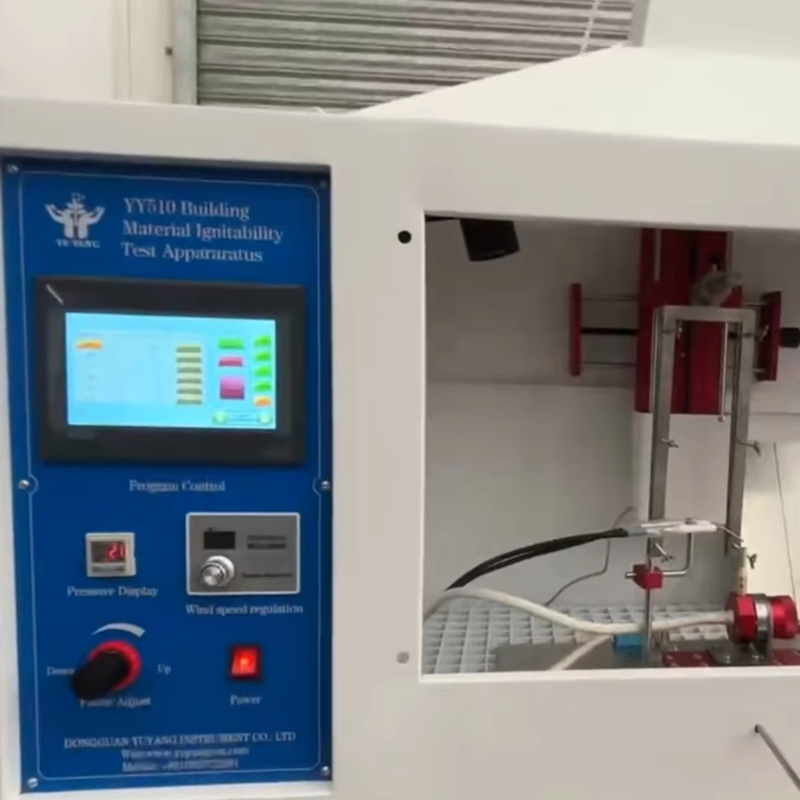

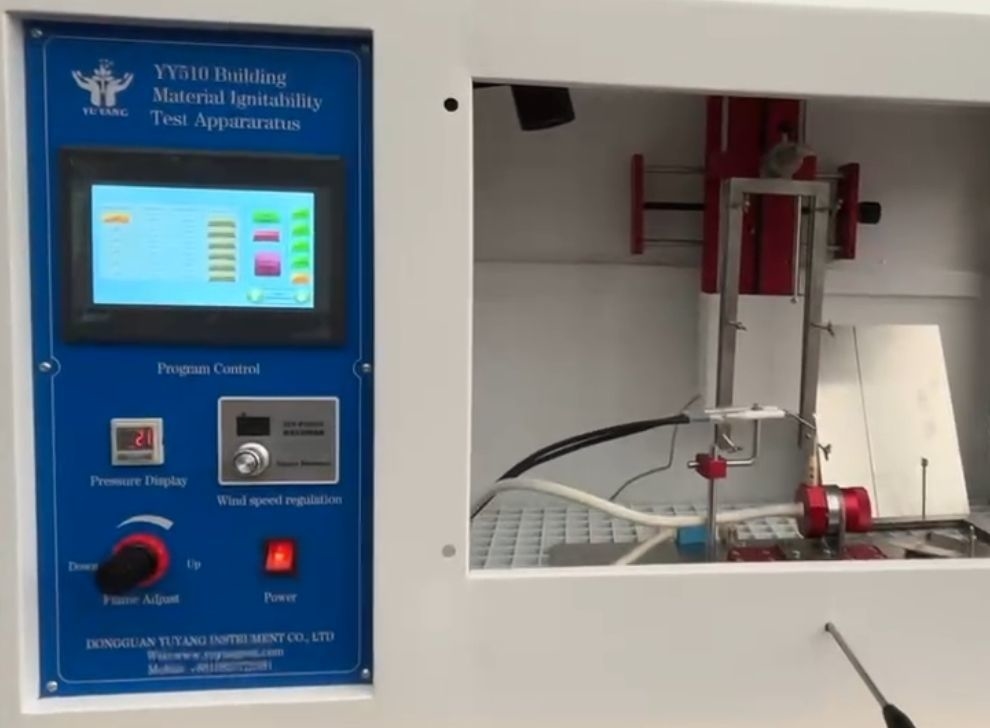

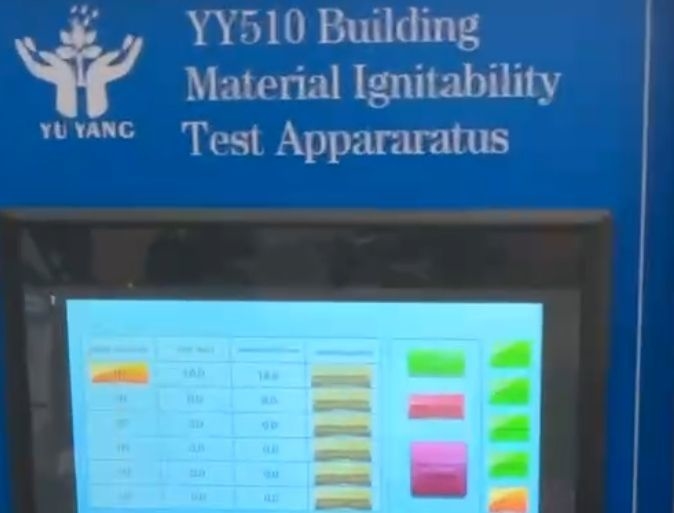

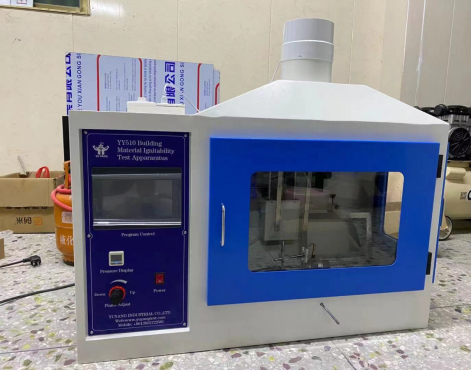

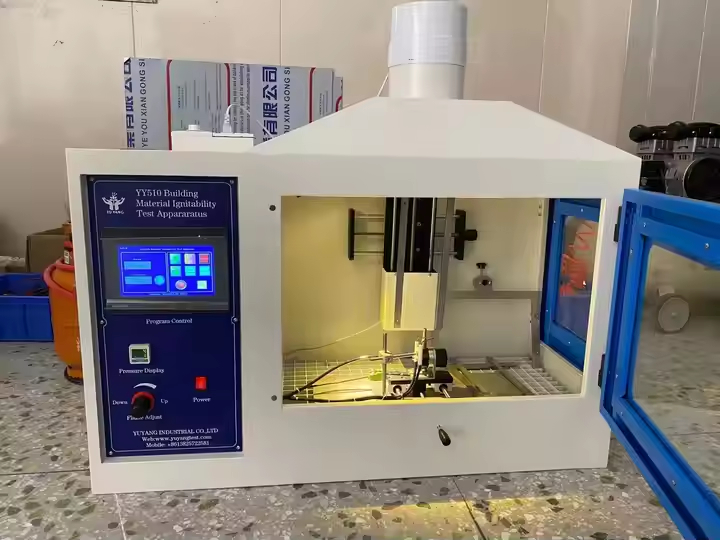

YY510 Building Material Ignitability Test Apparatus

Description

Ignitability test, also called single-flame source test. Test apparatus corresponds to standard EN ISO 11925-2. Test results of the building structure can be classified according to standard 13501-1.

The dimensions of the test specimens shall be (250) mm long by (90) mm wide.

45°-tilted burner is advanced horizontally until the flame (length 20 mm) reaches the pre-set contact point with the test specimen. Tests may need to be conducted to either surface exposure or edge exposure, or both. The flame application time is 15 or 30 seconds as required by sponsor.

During the test following is recorded: whether ignition occurs; whether the flame tip reaches 150 mm above the flame application point, and the time at which this occurs; whether ignition of the filter paper occurs; observations of physical behavior of the test specimen.

Specifications

This apparatus made up of two parts: burning chamber and control device.
Power supply: AC220V±10%,50Hz
Burner: diameter 0.17mm burner with regulator; four ￠4mm air suction inlet
Gas source: >95% propane gas (user should provide for themselves)
Gas pressure: 10kpa~50kpa
Flue air velocity: 0.7m/s only on condition of burner burning and draught hood open
Time adjustment of continuous flame: 0 ~ 99minutes99seconds
Time adjustment of afterflame: 0 ~ 99minutes99seconds
Timer accuracy: ≤1s/h
Anemometer: hot wire, accuracy ±0.1m/s, for measuring the airflow velocity in the upper outlet of the combustion chamber
Burner angle: 45°
Material: stainless steel
Observing window: two big viewing windows on the front and right side
Whole set: control device, burning chamber, burner, magnetic valve, flame lighter, signal control line and specimen holder
Equipped with a digital anemometer/thermometer and a stopwatch for simple but accurate measurement of the flow, temperature and time

Standards

GB / T8626-2007 Test Method of Flammability for Building Materials
EN ISO 11925-2:2010-Reaction to fire tests- Ignitability of building products subjected to direct impingement of flame-Part 2: Single-flame source test

Specimen Holder

Packing List

NO.	Name	Quantity	Packing Mode
1	Collector	1
2	Specimen holder	2
3	Template	2
4	Burner spacer	2	5mm-16mm
5	Flame-height measuring device	1
6	Igniter	1
7	Aluminum foil paper	1
8	Filter Paper	1
9	Anemometer	1
10	Instruction Manual	1
11	Quality Assurance	1
12	Product Certificate	1
13	Warranty Card	1
