40kw Ultra High Frequency Induction Heating Machine with 400-1800A Output and 0.08-0.16Mpa Cooling for Electrical Test Set

40kw Ultra High Frequency Induction Heating Machine with 400-1800A Output and 0.08-0.16Mpa Cooling for Electrical Test Set

400-1800A Induction Heating Machine

0.08-0.16Mpa Electrical Test Set

50C High Frequency Induction Heater

Herkunftsort:

China

Markenname:

YUYANG

Zertifizierung:

CE/CO

Modellnummer:

YYS-40AB

Kontakt mit uns
Fordern Sie ein Zitat
Einzelheiten zum Produkt
Modell:
YYS-40AB (dreiphasig)
Arbeitskraft:
340-430V
Eingabestrom:
65a
Schwankende Ausgangsleistung:
10–50 kHz
Ausgangsstrom:
400 bis 1800A
Die Flussrate des Kühlwassers:
0.08-0.16Mpa 9L/Min
Wassertemperatur-Schutzpunkt:
50c
Produktgröße:
Haupt: 780*3708620mm; Transformator: 510*260*410mm
Nettogewicht:
Hauptgewicht: 54 kg; Transformator: 32,5 kg
Hervorheben:

400-1800A Induction Heating Machine

,

0.08-0.16Mpa Electrical Test Set

,

50C High Frequency Induction Heater

Zahlungs- und Versandbedingungen
Min Bestellmenge
1 Satz
Preis
1000~3000
Verpackung Informationen
Sperrholzbox
Lieferzeit
6-10 Arbeitstage
Zahlungsbedingungen
, T/t
Versorgungsmaterial-Fähigkeit
20 Sätze pro Monat
Beschreibung des Produkts

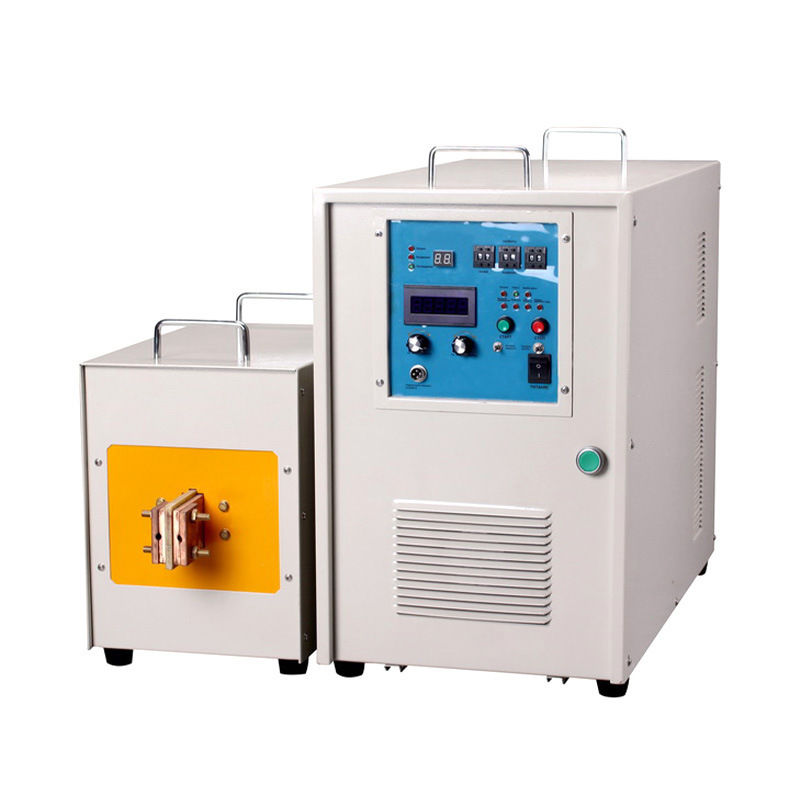

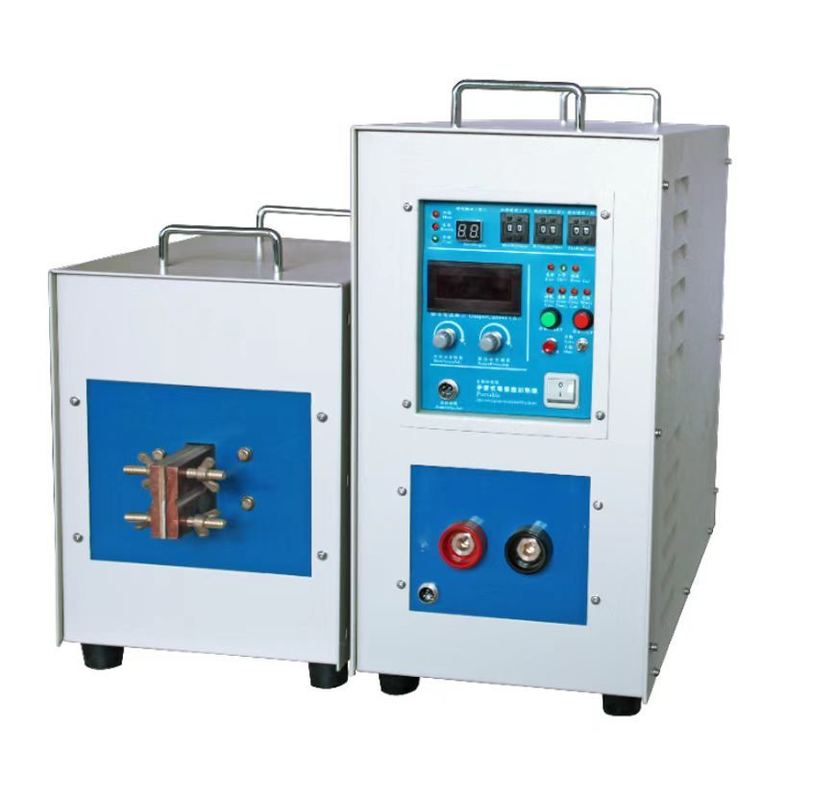

40kw Ultra High Frequency Induction Heating Machine Electrical Test Set
Integrating precise heating and electrical performance testing functions, it is specially designed for small and medium-sized metal workpieces, and is used to serve manufacturing, research and development, and quality inspection scenarios.
Technical Parameters
Parameter Value
Max Fluctuating Power 40KW
Fluctuating Frequency 10-50KHZ
Heating Current 400-1800A
Input Voltage (3Phase), 380V
The Flow Rate of Cooling Water 0.08-0.16Mpa, 9L/Min
Water Temperature Protecting Point 50°C
Product Features
  • Product line includes medium-frequency (15KVA~3000KVA) and high-frequency/ultra-high-frequency (3.2KVA~320KVA) equipment
  • Over 50 models available for various metal heating processes
  • Applications include quenching, surface heat treatment, annealing, welding, smelting, and more
Working Principle
  • Fully solid-state IGBT inverter module technology imported from Germany
  • Generates strong alternating magnetic field through induction coil
  • Eddy currents on workpiece surface enable rapid heating and instant temperature rise
Applications
  • Manufacturing: Surface hardening of gears/tooling, brazing of dissimilar metals, thermal assembly of micro-components
  • Quality Inspection: High-temperature testing of electrical terminals/motor windings
  • Research and Development: Thermal conductivity testing, small-scale melting of precious metals
