Beschreibung des Produkts

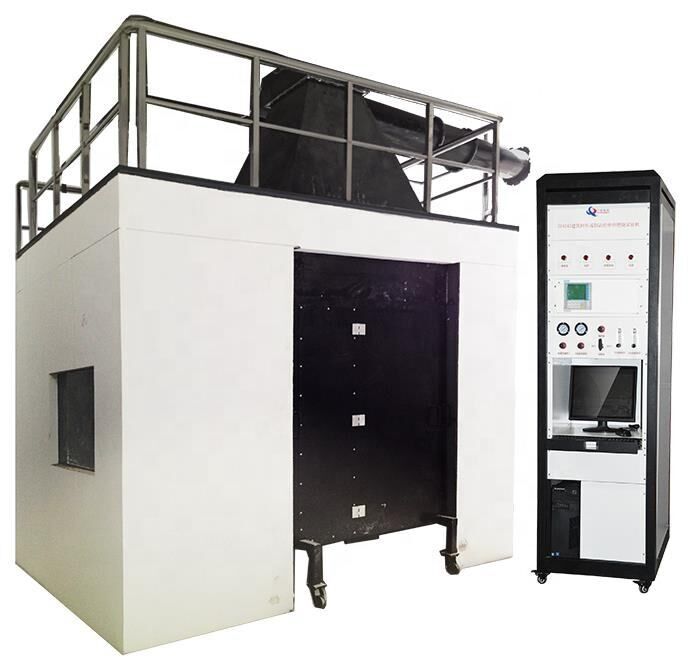

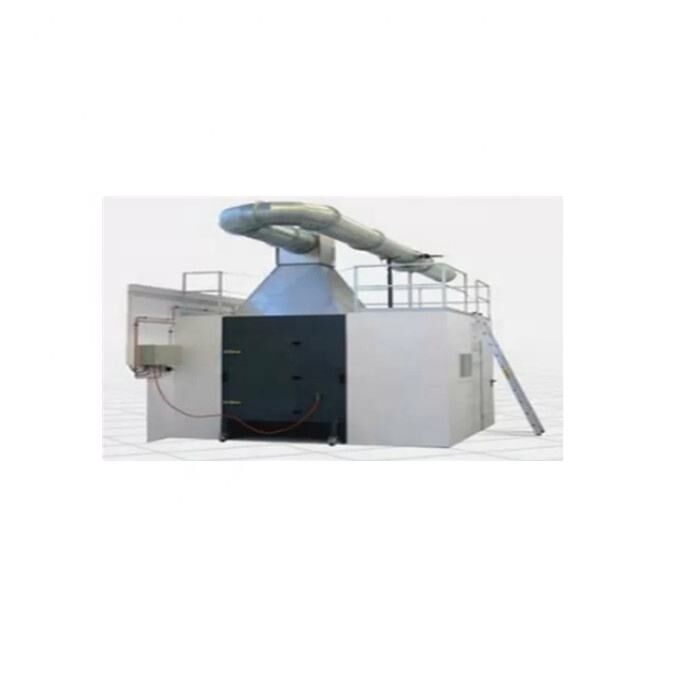

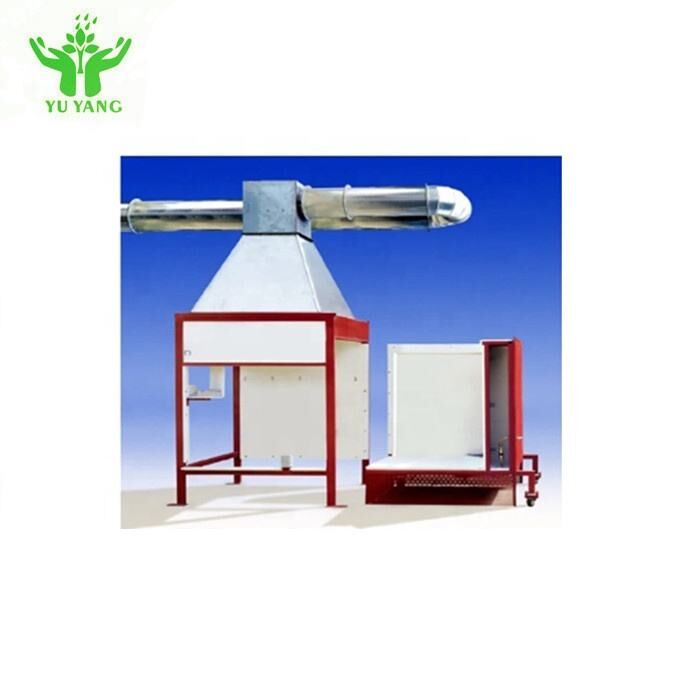

BS EN 13823 Single Burning Item Test Apparatus (SBI) for Building Materials

The Single Burning Item (SBI) test apparatus is designed to evaluate the fire performance of building materials (excluding flooring materials) under controlled thermal attack conditions. This sophisticated equipment provides comprehensive analysis of material combustion behavior through automated testing and precise measurements.

Key Testing Capabilities

Determines performance of building materials under single combustion heat attack conditions
Automated visual observation of specimen combustion reactions
Mechanical properties evaluation through heat release rate (H.R.R) and smoke release rate (S.R.R) calculations
Physical properties assessment via visual observation
Fire Growth Rate Index (FIGRA) as the primary measurement factor
Additional measurement parameters: oxygen consumption, CO and CO₂ generation, smoke growth rate index (SMOGRA)
Maximum heat release capacity up to 1MW

Test Room Dimensions: 3000mm × 3000mm × 2400mm (L×W×H)

Integrated Systems

Ignition System

10kV spark ignition with safety ceasefire device
Automatic igniter positioning via lever-connected closing mechanism
Imported mass flow meter for precise input flow control
Flame automatic alarm device for enhanced safety

Gas Sampling System

Comprehensive sampling components: particulate filter, cold trap, suction pump, drying cylinder, flow controller

Measurement System

Paramagnetic O₂ analyzer: 0-25% range, <1% linear deviation
Infrared CO₂ analyzer: 0-2/10% range, <±1% linear deviation
Laser-based smoke density measurement

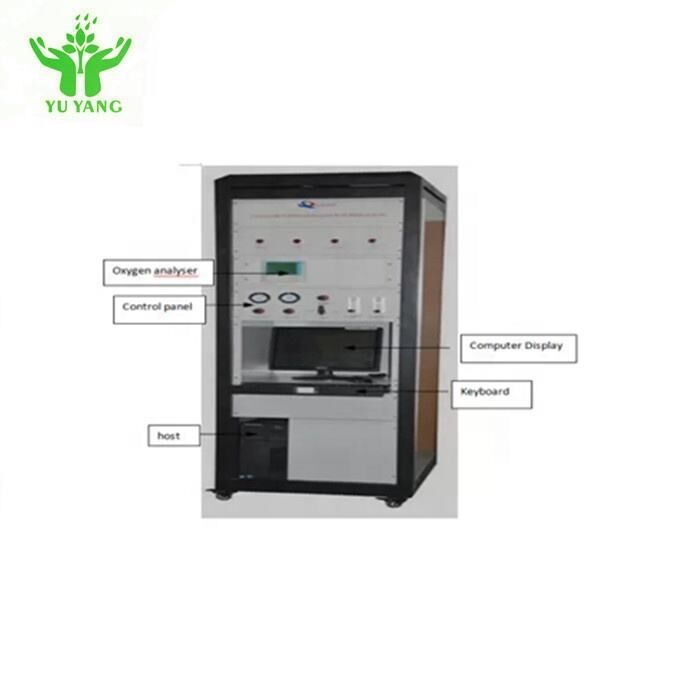

Computer Control System

Embedded 10.2" touch screen interface
Control parameter setting and display with test status monitoring
Real-time data acquisition and preservation
Live temperature curves and CO₂/O₂ data visualization
Historical data query and USB export capabilities
Independent machine control for complete testing operations
Audible alarms and accident display functions
USB/RS232 connectivity for external computer operation

Programmable Control System

Automatic ignition with failure detection protection
Automatic propane gas flow control and display
PLC + inverter for exhaust gas flow automation
Automatic measurement and calculation of combustion parameters: H.R.R, SPR, O₂ consumption, CO₂ generation

Compliance Standards

GB/T 20284-2006 Building products - single burning item
BS EN 13823 Reaction to fire tests for building products - Building products excluding floorings exposed to the thermal attack by a single burning item

Product Images
