Name: Salt Dry and Wet Cycle Corrosion Salt Spray Test Machine Compound Salt Spray Test Chamber
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY120-480L
Price: 2000 USD
Availability: InStock

Zu Hause > produits > Umwelt-Prüfschrank >

Salt Dry and Wet Cycle Corrosion Salt Spray Test Machine Compound Salt Spray Test Chamber

salt spray test machine

compound salt spray chamber

dry wet corrosion tester

Herkunftsort:

China

Markenname:

YUYANG

Zertifizierung:

Modellnummer:

YY120-480L

Kontakt mit uns

Fordern Sie ein Zitat

Einzelheiten zum Produkt

Testraumgröße (BxLxH)(mm):

1200*1000*500

Maschinengröße (BxLxH)(mm):

1410*880*1280

Labortemperatur:

NSS.ACSS 35 °C ± 1 °C / CASS 50 °C ± 1 °C

Temperatur des Sättigungsgerätes:

NSS.ACSS 35 °C ± 1 °C / CASS 50 °C ± 1 °C

Luftfeuchtigkeit:

85% bis 98% RH

Temperaturbereich:

± 0.5ºC

Salzspray abnehmen:

1.0~2.0ml/80cm2/h

Stromversorgung:

AC220V 50Hz

Hervorheben:

salt spray test machine

compound salt spray chamber

dry wet corrosion tester

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Satz

Preis

$2000

Verpackung Informationen

Sperrholzkiste

Lieferzeit

5-10 Werktage

Zahlungsbedingungen

T/T, L/C, Western Union

Versorgungsmaterial-Fähigkeit

200 Sätze pro Monat

Verwandte Produkte

Video

Large Capacity Salt Spray Corrosion Test Box for Various Material Testing

Beste Preis

Video

Titanium Alloy Salt Fog Test Chamber for Hardware and Chemical Components

Beste Preis

Video

Industrial Electronic Power Continuous Salt Spray Corrosion Tester 220V Saline Spray for Test Machine with 1 Year Warranty

Beste Preis

Video

220V Electronic Salt Fog Corrosion Testing Machine Wave Style Salt Spray Aging Chamber 1 Year Warranty Salt Mist Resistance

Beste Preis

Kontakt mit uns

8613265296009

sales13@yuyangtest.com

86-769-26622869

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

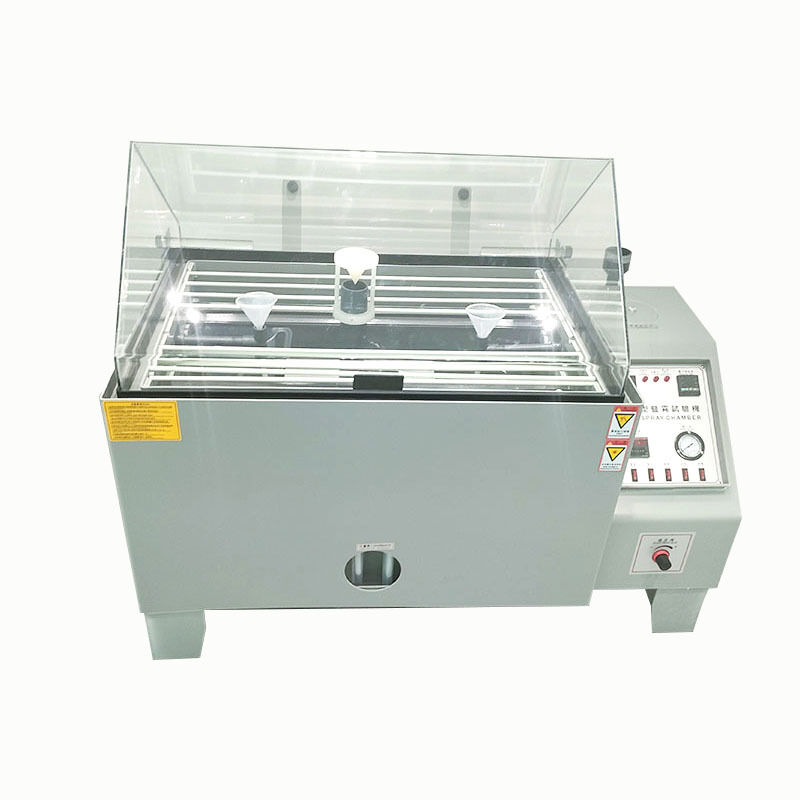

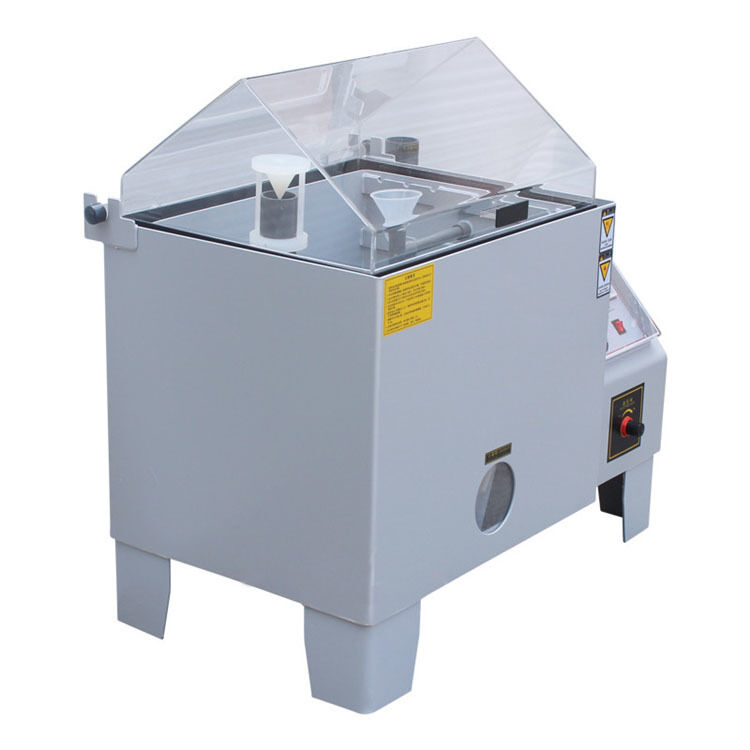

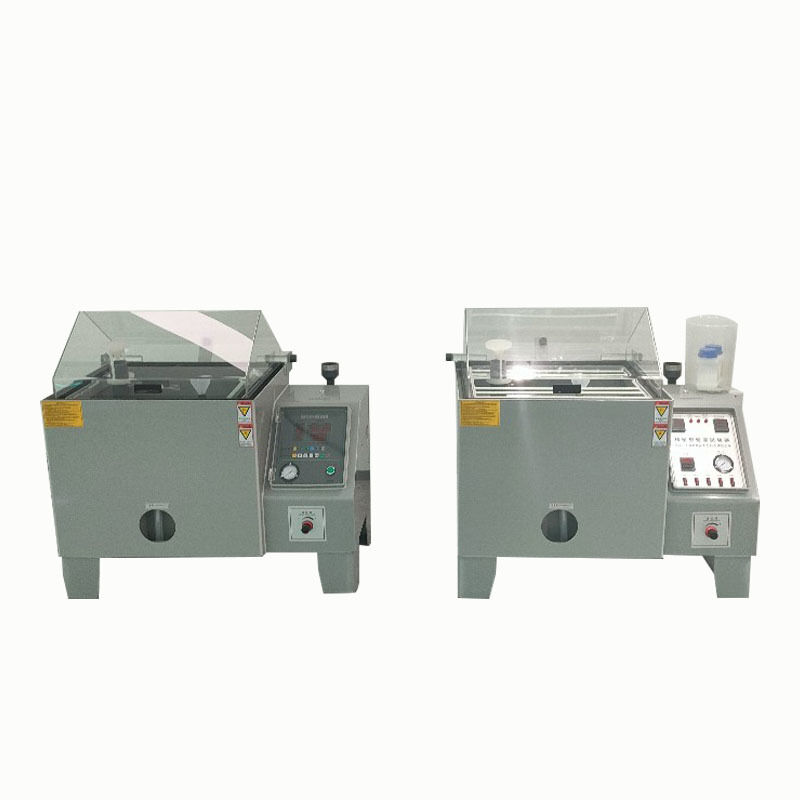

Salt Dry and Wet Cycle Corrosion Salt Spray Test Machine

This multifunctional compound salt spray test chamber supports combined salt spray, dry and wet cycle corrosion testing for accelerated material aging assessment.

Product Overview

This salt spray test chamber is designed for evaluating the corrosion resistance of various surface-treated materials including paints, electroplating, organic and inorganic coatings, anode processing, and anti-rust oils after anti-corrosive treatment.

Construction Materials

Laboratory chamber constructed from 5mm thick PVC sheet, capable of withstanding temperatures up to 80°C
Laboratory closure features 6mm thick high-impact acrylic sheet
Reagent supplementary bottles include water level perspective windows with hidden viewing areas for easy cleaning and durability
Saturated air barrel manufactured from SUS #304 stainless steel for optimal insulation and pressure resistance
Laboratory basket features flat indexing frame with adjustable angles, ensuring uniform mist distribution across test specimens

Compliance Standards

GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201, H8502, H8610, K5400 Z2371

Technical Specifications

Model	YY120-480L
Test Room Size (W×L×H)	1200 × 1000 × 500 mm
Machine Size (W×L×H)	1410 × 880 × 1280 mm
Laboratory Temperature	NSS/ACSS: 35°C ± 1°C / CASS: 50°C ± 1°C
Saturator Temperature	NSS/ACSS: 35°C ± 1°C / CASS: 50°C ± 1°C
Humidity	85% ~ 98% RH
Temperature Range	± 0.5°C
Salt Spray Settling Rate	1.0 ~ 2.0 ml/80cm²/h
Power Supply	AC220V 50HZ
